The Complete Guide to Shipping Container Weight Specifications
Why Shipping Container Weight Matters for Your Business
Shipping container weight is a critical specification to know before purchasing, renting, or loading a container. Whether for on-site storage, shipping, or a custom project, understanding weight limits is essential for safety, legal compliance, and efficiency.
Quick Reference: Standard Container Weights
| Container Size | Tare Weight (Empty) | Payload Capacity | Max Gross Weight |
|---|---|---|---|
| 10ft Standard | ~2,870 lbs (1,300 kg) | ~19,750 lbs (8,960 kg) | ~22,400 lbs (10,160 kg) |
| 20ft Standard | ~4,850-5,200 lbs (2,200-2,360 kg) | ~47,900 lbs (21,730 kg) | ~52,900 lbs (24,000 kg) |
| 40ft Standard | ~8,200 lbs (3,720 kg) | ~59,000 lbs (26,760 kg) | ~67,200 lbs (30,480 kg) |
| 40ft High Cube | ~8,750 lbs (3,970 kg) | ~58,450 lbs (26,510 kg) | ~67,200 lbs (30,480 kg) |
Every shipping container has three key weight measurements: tare weight (the empty container), payload capacity (how much cargo it can hold), and maximum gross weight (the absolute limit). Miscalculating these can lead to safety hazards, fines, shipping delays, or structural damage.
Weight specifications also determine if a truck can legally transport the container, if your property can support it when loaded, and if you are complying with maritime regulations like the IMO’s Verified Gross Mass (VGM) requirement.
I’m Steve Hyndman, Vice President of Aztec Container. With over 30 years of experience in the industry, I’ve helped thousands of customers steer container weight specifications for everything from shipping logistics to on-site foundation requirements.
Understanding Key Container Weight Terminology
When discussing shipping container weight, three fundamental terms are crucial for safe and effective use. These universally recognized terms are essential for all logistics planning.
Tare Weight: The Container’s Empty Mass
The tare weight (or unladen weight) is the weight of an empty shipping container without any cargo or modifications. This measurement is always displayed on the container’s CSC (Container Safety Convention) plate, located on the doors.
Several factors influence a container’s tare weight:
- Size and Type: Larger or specialized containers (like reefers) are heavier than smaller, standard dry containers.
- Manufacturing Materials: The thickness and grade of steel used can cause slight variations.
- Container Age and Condition: Older containers may gain weight from repairs or moisture absorption in the wood flooring.
- Repairs and Modifications: Customizations like doors, windows, or insulation add to the original tare weight.
The tare weight is the starting point for all weight calculations. For example, a standard 20ft container has a tare weight between 4,850 and 5,200 lbs (2,200-2,360 kg), while a 40ft standard container weighs around 8,160 lbs (3,700 kg).
Payload Capacity: How Much Cargo It Can Hold
The payload capacity is the maximum weight of cargo a container is designed to carry safely. It is calculated by subtracting the tare weight from the maximum gross weight:
Payload Capacity = Maximum Gross Weight – Tare Weight
Exceeding the payload capacity can compromise the container’s structural integrity, leading to damage or accidents. When loading, consider both total weight and weight distribution. Concentrating heavy items in one area creates dangerous, unbalanced loads. Always distribute weight as evenly as possible.
For instance, a standard 20ft container has a payload capacity of around 47,900 lbs (21,730 kg). When loading dense materials, you might reach this weight limit (weight out) before filling the container’s volume (cube out).
For more information on our robust 20ft containers, you can explore their features here: More info about our 20ft containers.
Maximum Gross Weight (MGW): The Absolute Limit
The maximum gross weight (MGW), or maximum laden weight, is the total allowable weight of the container plus its cargo. It is the absolute upper limit the container can safely handle.
The MGW is a critical safety parameter that dictates the maximum stress the container’s frame and components can withstand. Exceeding this limit can lead to catastrophic failure during stacking, lifting, or transport.
A standard 20ft container’s MGW is typically around 52,910 lbs (24,000 kg), while a 40ft container’s limit is about 67,200 lbs (30,480 kg). ISO (International Organization for Standardization) standards, like ISO 668 – Wikipedia, define these ratings for global compatibility. While some modern ISO containers are rated for a higher gross mass up to 79,370 lbs (36,000 kg), the specific certified MGW for any unit is always listed on its CSC plate.
Standard Shipping Container Weight Specifications
The most common sizes for storage and shipping are 10ft, 20ft, and 40ft standard dry containers. These are the workhorses of global trade and on-site storage. Here are their typical weight specifications.
20ft Standard Dry Container Weight
The 20ft container is one of our most popular and versatile options, often called a Twenty-foot Equivalent Unit (TEU) in the shipping industry.
- Tare Weight (Empty): A 20ft container typically weighs between 4,850 – 5,200 lbs (2,200 – 2,360 kg).
- Payload Capacity: It can hold around 47,900 lbs (21,730 kg) of cargo, making it ideal for heavier, denser goods.
- Maximum Gross Weight: The total weight should not exceed approximately 52,910 lbs (24,000 kg).
Our 20ft containers provide reliable, secure storage for customers from Phoenix, AZ, to Sacramento, CA.
If you’re considering this size, you can Explore 20ft storage containers in more detail.
40ft Standard & High Cube Container Weight
For larger needs, the 40ft container and its taller sibling, the 40ft high cube, are excellent choices.
40ft Standard Container:
- Tare Weight (Empty): Typically weighs around 8,160 lbs (3,700 kg).
- Payload Capacity: Boasts an impressive payload of approximately 59,000 lbs (26,760 kg).
- Maximum Gross Weight: The limit is generally around 67,200 lbs (30,480 kg).
40ft High Cube Container:
A ‘high cube’ is one foot taller, providing extra vertical space and a slight increase in empty weight.
- Tare Weight (Empty): Approximately 8,750 lbs (3,970 kg), about 600 lbs more than a standard 40ft due to the additional steel.
- Payload Capacity: Typically around 58,450 lbs (26,510 kg).
- Maximum Gross Weight: The MGW is also around 67,200 lbs (30,480 kg), as the main advantage is volume, not load-bearing capacity.
Our 40ft containers are perfect for large-scale projects, from warehouse inventory in Las Vegas, NV, to construction materials in Denver, CO.
To see more options, View our 40ft storage containers.
10ft Shipping Container Weight
For compact and secure storage, our 10ft containers offer surprising capacity in a small footprint.
- Tare Weight (Empty): Approximately 2,870 lbs (1,300 kg).
- Payload Capacity: Can carry around 19,750 lbs (8,960 kg), suitable for dense items.
- Maximum Gross Weight: The total limit is typically around 22,400 lbs (10,160 kg).
These units are popular for personal storage, small business inventory, or tool sheds in areas with limited space, like Los Angeles, CA, or Salt Lake City, UT.
If you’re interested in these convenient units, Check out our 10ft containers.
Weight Variations in Specialized Containers
Specialized containers are designed for goods that require specific conditions, and their unique features affect their shipping container weight specifications.
Refrigerated (Reefer) Containers
Reefer containers maintain precise temperature control for perishable goods. This function significantly impacts their weight.
- Heavier Tare Weight: Reefers are heavier due to extensive insulation and built-in refrigeration machinery (compressors, condensers, etc.).
- 20ft Reefer Specs: A 20ft reefer has a tare weight of around 7,040 lbs (3,193 kg) and a payload capacity of about 45,760 lbs (20,756 kg), making it much heavier than a standard 20ft dry container.
- 40ft High Cube Reefer Specs: A 40ft high cube reefer can have a tare weight from 9,524 lbs (4,320 kg) to 10,780 lbs (4,889 kg), with a payload capacity between 56,276 lbs (25,526 kg) and 62,126 lbs (28,180 kg).
These containers are crucial for transporting temperature-sensitive goods like produce or pharmaceuticals. While 40ft high cube reefers exist, they are less common and have specific weight considerations.
We also offer specialized options for insulated storage, which are ideal where temperature moderation is key. Learn more about our 40ft insulated containers.
Open-Top and Flat Rack Containers
For cargo that is too tall, wide, or heavy for a standard container, open-top and flat rack containers are the solution.
- Open-Top Containers: These have a removable tarpaulin roof for easy top-loading of overheight cargo. A 20ft open-top weighs around 5,280 lbs (2,394 kg), while a 40ft open-top is about 8,490 lbs (3,850 kg). Their tare weight is slightly higher than standard containers due to their robust frame.
- Flat Rack Containers: Designed with a sturdy base and corner posts but no side walls (and sometimes no end walls), flat racks are for extremely heavy or oddly shaped cargo. They feature heavily reinforced floors to support concentrated loads.
- Flat Rack Tare Weight: A 20ft flat rack’s tare weight is about 5,578 lbs (2,530 kg), and a 40ft flat rack can weigh around 12,081 lbs (5,479 kg). Collapsible models are even heavier. Their payload capacities are often much higher than standard containers to handle industrial machinery or large vehicles.
These specialized containers are vital for the manufacturing, construction, and energy industries.
The Importance of Accurate Shipping Container Weight
Understanding shipping container weight is a fundamental aspect of safety, legal compliance, and operational efficiency. Whether moving a container across the ocean or placing it on your property, accurate weight information is non-negotiable.
Why Accurate Weight is Crucial for Safety and Compliance
Inaccurate container weights pose serious risks throughout the supply chain.
- Preventing Accidents: Overloaded or unbalanced containers can cause stack collapses on ships, crane failures in ports, and rollovers on roads.
- Ship and Crane Safety: Ships are loaded based on precise weight plans to ensure stability. Overweight containers can over-stress a ship’s structure or a crane’s lifting capacity, risking catastrophic failure.
- Road Transport Limits: Every state has specific weight limits for trucks. Exceeding these limits in our service areas (including California, Arizona, and Texas) can result in significant fines and delays. You can check State truck size and weight limit laws for detailed information.
- Avoiding Fines and Delays: Inaccurate weight declarations lead to costly penalties and delays from port and road authorities who may hold containers for re-weighing.
Understanding the IMO’s VGM Requirement
To address these risks, the International Maritime Organization (IMO) implemented the Verified Gross Mass (VGM) requirement under the Safety of Life at Sea (SOLAS) Convention. This rule mandates that the shipper must provide the accurate gross weight of a loaded container before it can be loaded onto a ship for export. Without a VGM, a container cannot be shipped.
Shippers have two approved methods for obtaining the VGM:
- Method 1: Weighing the fully packed and sealed container using certified equipment.
- Method 2: Weighing all cargo items, packing, and securing materials individually and adding that sum to the container’s tare weight.
The principle of accurate weighing is crucial for all container handling, not just international shipping. For more on maritime safety, you can visit the IMO regulations on dangerous goods page.
Common Methods for Weighing Loaded Containers
Several reliable methods exist to determine a loaded container’s total weight:
- Weighbridge Scales: A large, highly accurate platform scale that weighs the entire truck and container. The truck’s weight is then subtracted to find the container’s gross weight.
- Terminal Crane Scales: Many port cranes have integrated scales that weigh the container as it is lifted, combining weighing with the loading operation.
- Jack-Based Weighing Systems (Load Cells): Portable systems that use load-sensing jacks or cells placed under the container’s corners to weigh it on-site.
- Axle Weigh Pads: Portable pads placed under each truck axle to estimate total weight, useful for checking road limit compliance.
Choosing the right method depends on accessibility, required accuracy, and budget. For legal compliance and safety, always use calibrated and certified equipment.
Frequently Asked Questions about Shipping Container Weight
Here are answers to common questions we receive about shipping container weight.
Where can I find the exact weight of a specific container?

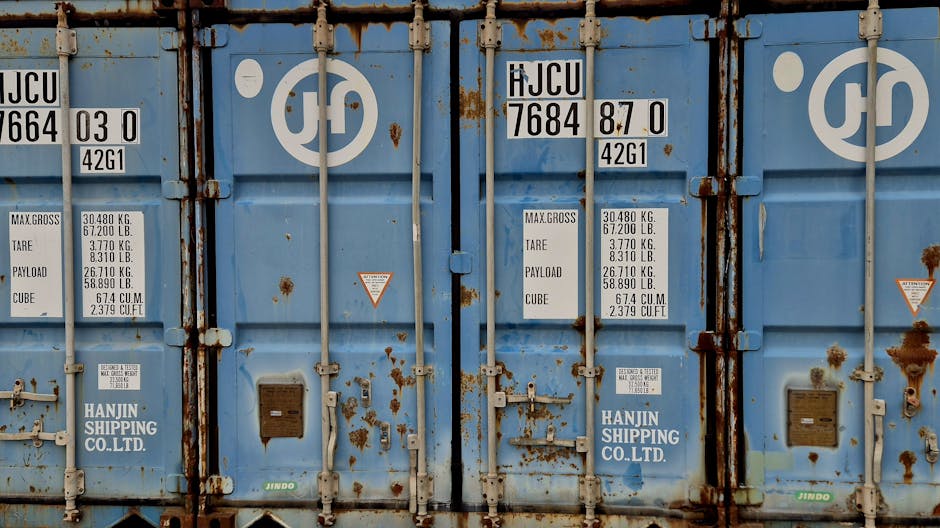

The most accurate place to find a container’s weight specifications is on its CSC (Container Safety Convention) plate. This metal plate is typically located on the left container door.
The CSC plate lists key information:
- Tare Weight (TARE): The empty weight of the container.
- Maximum Gross Weight (MAX. GR. WT.): The maximum total weight of the container plus cargo.
- Payload Capacity (PAYLOAD or MAX. CARGO): The maximum weight of cargo it can hold.
Always use the CSC plate for the certified, legal weight specifications of your specific unit.
Does the weight of a shipping container change over time?
Yes, a container’s shipping container weight can change. While the core structure is consistent, variations occur due to:
- Original Tare Weight: Small differences exist between manufacturers.
- Repairs: Welding and patching add a small amount of weight over the container’s lifespan.
- Moisture Absorption: Wooden floors can absorb moisture, slightly increasing the tare weight.
- Modifications: Adding features like shelving or custom doors will increase the empty weight.
- Modern Manufacturing: Newer containers can sometimes be lighter than older models due to more efficient designs and materials.
Always refer to the CSC plate for the original tare weight and account for any modifications.
Are there weight limits for placing a container on my property?
While there are no legal weight limits for placing a container on private property like there are for roads, there are critical practical considerations related to the total shipping container weight:
- Ground Stability: A fully loaded 40ft container can weigh over 67,000 lbs. This concentrated weight requires stable ground. Soft soil or weak asphalt can cause the container to sink or tilt, potentially damaging the container’s frame.
- Level and Firm Ground: We always recommend placing containers on level, firm ground. This ensures weight is evenly distributed and prevents the frame from twisting, which can make doors difficult to operate.
- Foundation Requirements: For long-term placement or heavy loads, consider a foundation like concrete footings, railroad ties, or a gravel bed. A proper foundation spreads the weight and prevents settling. If stacking containers, consulting a structural specialist is essential.
Our team at Aztec Container can advise on site preparation to ensure your container is placed securely, whether for storage in Fresno, CA, or a temporary office in Boise, ID.
Conclusion: Making an Informed Decision
Understanding shipping container weight specifications — from tare weight and payload capacity to maximum gross weight — is not just a matter of technical detail; it’s essential for ensuring safety, compliance, and efficiency in every aspect of container use. Whether you’re transporting goods across oceans or simply using a container for secure storage on your property, knowing these numbers is paramount.
We’ve explored how different container sizes and types, such as standard dry containers, high cubes, reefers, and flat racks, have distinct weight profiles. We’ve also highlighted the critical importance of accurate weighing to prevent accidents, avoid fines, and comply with international regulations like the IMO’s VGM mandate. Always remember that the CSC plate on your container’s door is the definitive source for its specific weight specifications.
At Aztec Container, we are committed to providing you with reliable, high-quality steel shipping containers that meet rigorous industry standards. We offer a wide range of units, from compact 10ft containers to spacious 40ft high cubes, suitable for various applications across California, Arizona, Colorado, Idaho, Montana, Nevada, New Mexico, Texas, and Utah. Our knowledgeable team is here to help you select the right container for your needs and ensure you have all the information required for safe and effective use.
Ready to find the perfect container solution for your next project? Explore our range of storage containers to find the right fit for your project.
